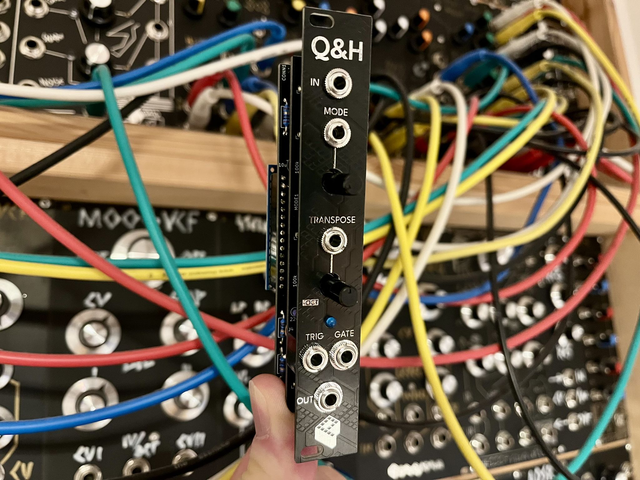

Eurorack Quantize & Hold Arduino Kit/PCB Modular Synthesizer

This Arduino based module let’s you quantize and hold a given control voltage. There are controls for selecting different scales and transposing a note. The module can either continuously quantize a given voltage or hold it when triggered. The software is open-source, so you can adjust it to your liking. It is a great companion for sequencers with unquantized outputs or for quantizing other voltage sources.

Perfect companion for the Sequencer.

Key features

1. Quantizer
2. Arduino based, open-source software
3. Scale mode control, also per CV
4. Pass-through mode
5. Control for transposing a note -24 to +24 semitones, also per CV
6. Trigger input for holding a voltage
7. Gate output for voltage changes in continuous mode
8. CV input 0-5V
9. CV output 0-7V (1V/oct)
10. 4HP wide

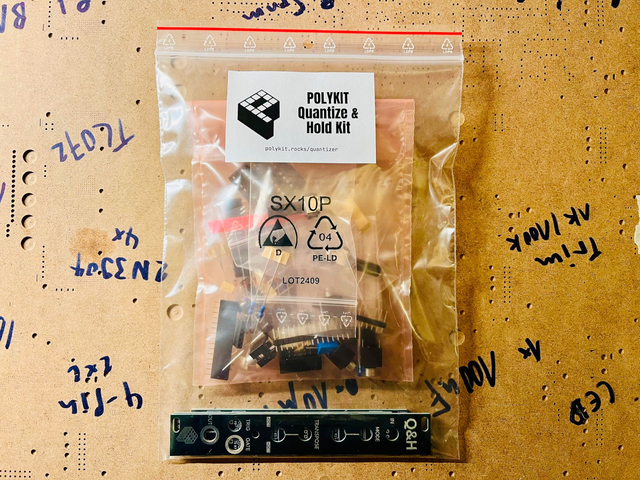

The kit includes

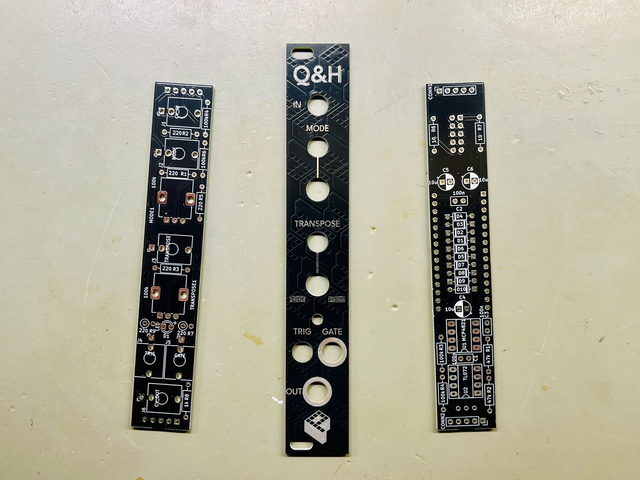

1. PCB and panel
2. all needed components to assemble the module

More details at https://polykit.rocks/quantizer

Please note the product safety information. Used or assembled kits and PCBs can't be returned.
