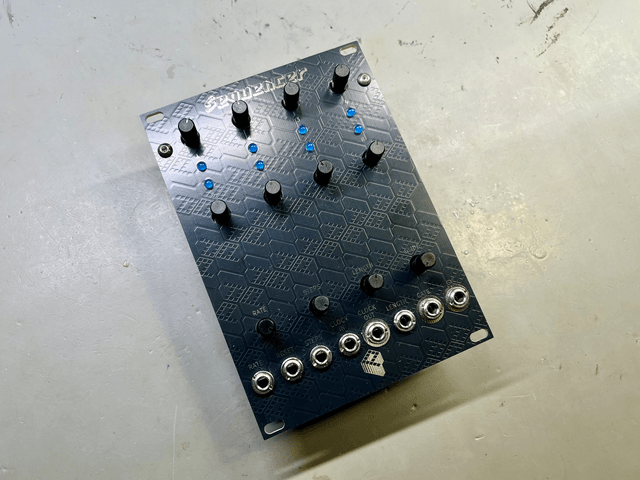

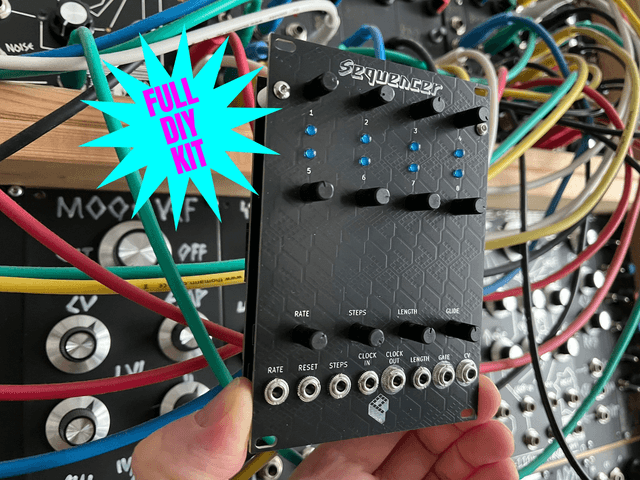

Eurorack Sequencer DIY PCB/Kit Modular Synthesizer

The Eurorack Sequencer is a straightforward, flexible 8-step sequencer designed around the Arduino Nano. It offers a hands-on approach to pattern creation with plenty of CV control options. Multiple units can be chained for longer sequences, and since the firmware is open-source, you can easily tweak or extend the functionality.

Key Specs

• 8-step analog sequencer
• Unquantized CV output
• Arduino-based open-source firmware
• Front-panel controls for rate, step count, gate length, and glide
• CV inputs for rate, step count, and gate length
• Clock input/output for syncing with other gear
• Gate output and reset input
• Extension port
• Supports daisy-chaining for longer sequences
• Output voltage range: 0–5V
• Width: 18HP

The kit includes

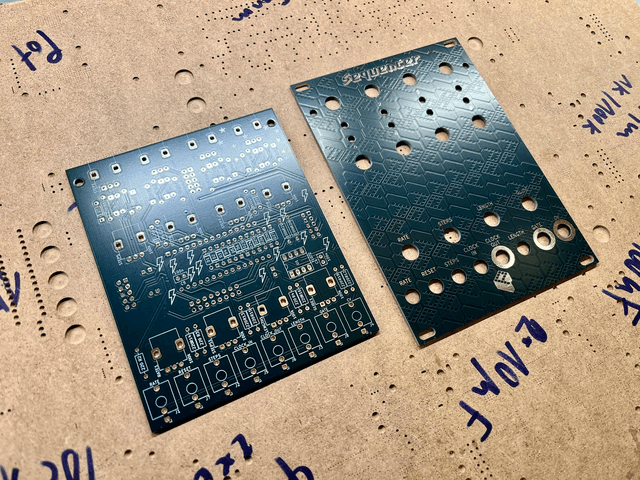

• PCB and panel
• all needed components to assemble the module

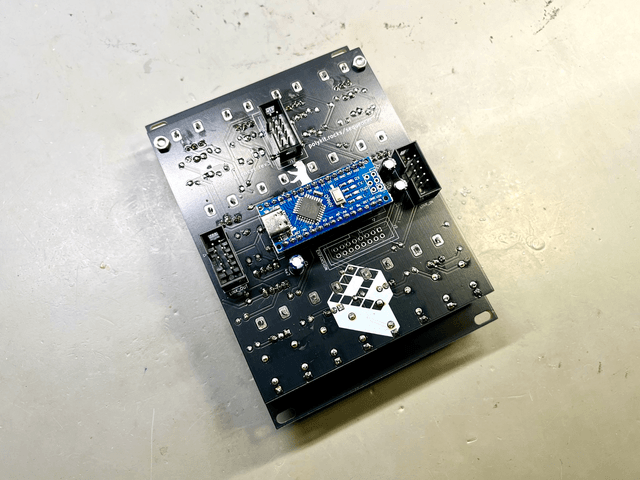

• pre-flashed Arduino Nano

Details and instructions at https://polykit.rocks/sequencer

Please note the product safety information. Used or assembled kits and PCBs can't be returned.
