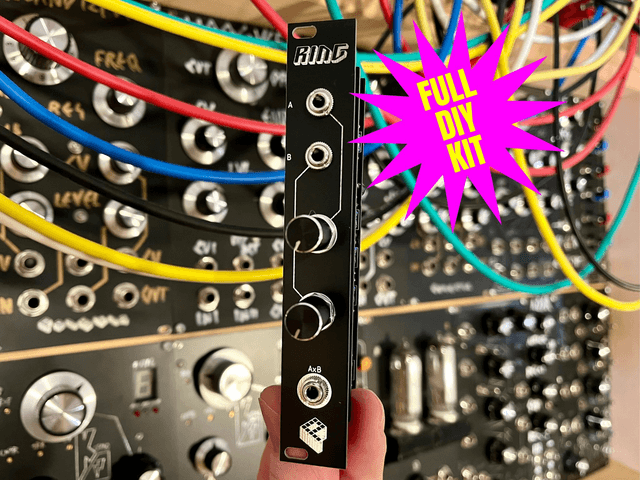

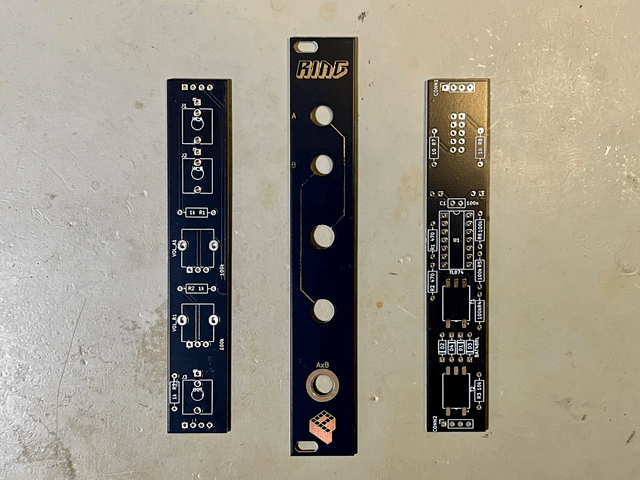

Eurorack Ring Modulator PCB/Kit Modular Synthesizer

This Eurorack ring modulator allows the multiplication/amplitude modulation of two signals. There are two center-tapped mini transformers and a ring of four diodes which form this classic analog circuit to create bell-like or metallic sounds. The inputs and output are buffered.

Needed mini audio transformers are available in my store

Key features

1. ring modulator
2. multiplication/amplitude modulation of two signals
3. attenuators on the inputs
4. easy to assemble
5. 4 HP

The kit includes

1. all needed components to assemble the module

Technical details and assembly guide at https://polykit.rocks/ring

Please note the product safety information. Used or assembled kits and PCBs can't be returned.
