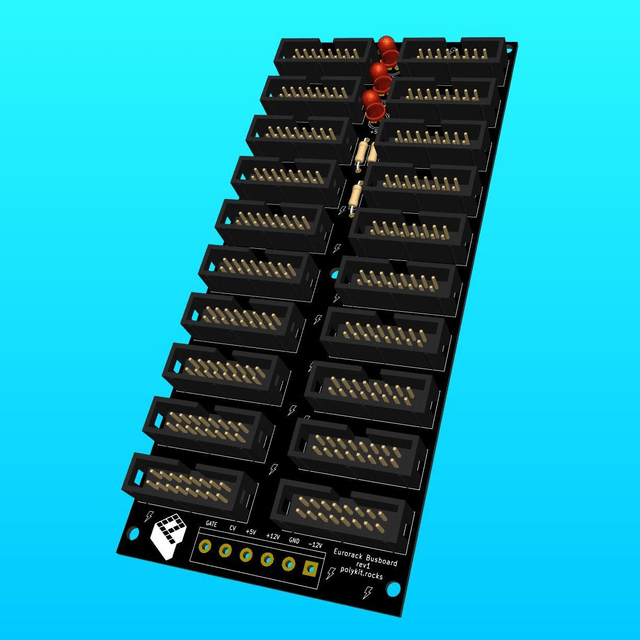

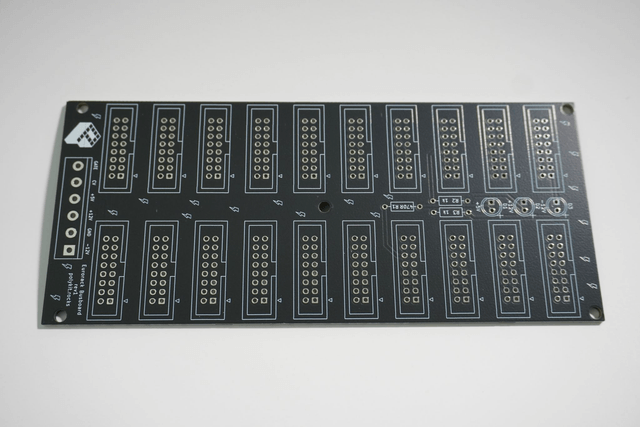

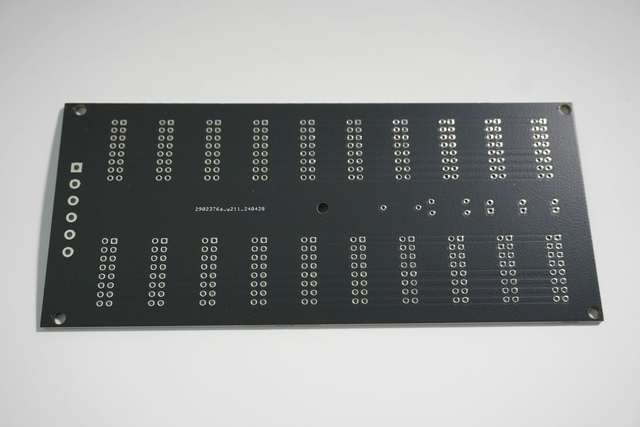

Eurorack Power Delivery DIY Kit/PCB +12V/-12V/+5V

A reliable Eurorack power distribution busboard for DIY modular systems. Connected to your Eurorack power supply, this busboard can distribute power to up to 20 modules, making it ideal for medium to large cases and custom builds.

The board provides the standard –12V, +12V and +5V rails, plus dedicated CV and GATE rails for optional signal distribution. Onboard LEDs allow quick visual verification of all supply voltages.

Key features

1. 20 × 16-pin IDC Eurorack power connectors
2. Power rails: –12V / +12V / +5V
3. CV and GATE distribution rails
4. LED indicators for all voltages
5. Screw terminal
6. Through-hole components only – easy to build
7. Dimensions: 154 × 67.5 mm

The kit includes

1. 20 × 16-pin IDC sockets
2. LEDs
3. Resistors
4. 6-pin screw terminal

Notes

1. Requires an external Eurorack power supply (not included)
2. Technical details and assembly instructions: https://polykit.rocks/busboard
3. Please note the product safety information
4. Assembled kits and PCBs are non-returnable
