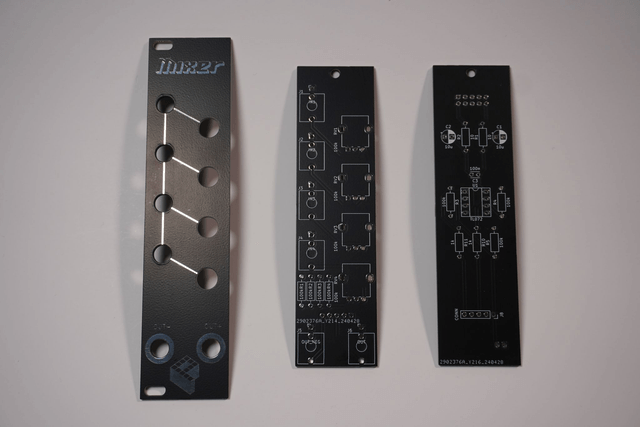

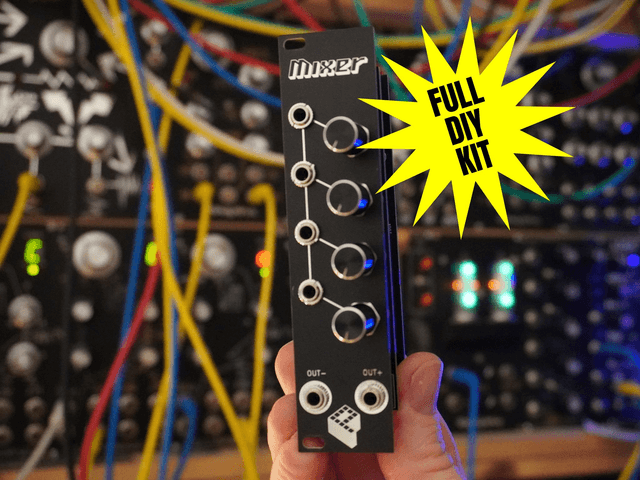

Eurorack Mixer Module DIY Kit/PCB 4-Channel Inverted

This module is part of my Eurorack series. It is a simple mixer with four channels. There is an inverted output signal in addition to the non-inverted one.

Key features

• four channel mixer
• for audio and CV
• additional inverted output
• easy to build, all through hole components
• 6HP

How it works

The four channels are summed up and can be attenuated individually. In addition to the normal output there is an inverted one. This makes it not only great as an output section for your modular but can also be used to mix control voltages.

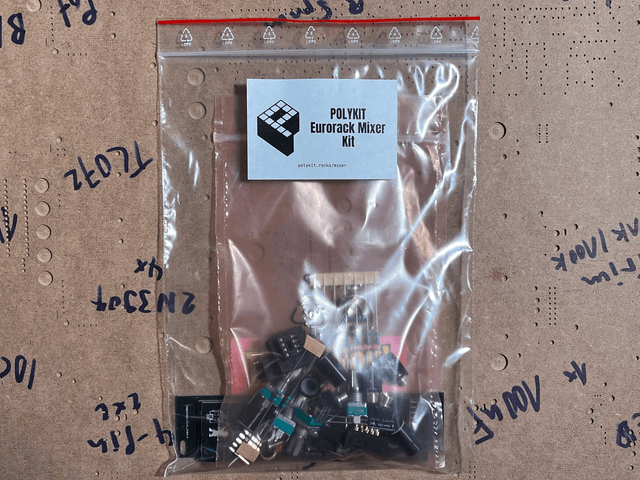

The kit includes

• all needed components
• selected quality parts

See https://polykit.rocks/mixer for technical details and assembly.
