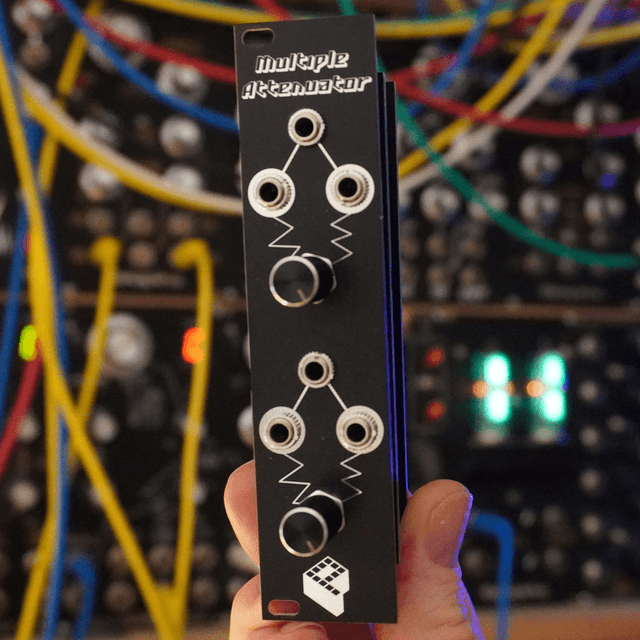

Eurorack Buffered Multiple/Attenuator DIY PCB

This module is part of my Eurorack series. It is a simple utility module that makes two copies of one input signal.

Key features

• dual buffered multiple
• attenuator
• input can range from -12V to +12V
• easy to build, all through hole components
• 6HP

How it works

The input voltage is buffered and copied to both outputs. This is great for having multiple copies of one control voltage which are not interfering each other, e.g. to use it in multiple oscillators or filters. The output can be attenuated and can also be used for audio signals.

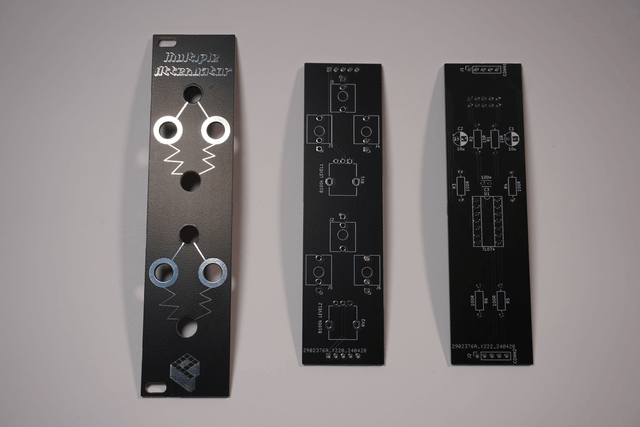

This offering only includes the PCB without components!

See https://polykit.rocks/multiple for technical details and assembly.
